Mixeur homogénéisateur à couteaux

PULVERISETTE 11

Référence
11.3020.00
Détails du produit
Description CARACTÉRISTIQUES TECHNIQUES
Accessoires
Vidéos / ANIMATIONS 3D Téléchargements
Accessoires

Pour une adaptation spécifique à votre application, nous offrons des accessoires complémentaires. Un récipient de broyage de 1,4 l en plastique transparent anti-rayures, autoclavable avec un couvercle standard et le couteau standard en acier inoxydable 316L qui sont inclus dans le prix de base de l'instrument. Lors de la commande d'une configuration différente des accessoires standards, veuillez préciser le numéro d'article exact de la pièce à remplacer.

Les durées de broyage de la PULVERISETTE 11 sont tellement courtes qu’il est possible de traiter des échantillons très rapidement. Il est donc rentable de commander plusieurs cuves de broyage pour les utiliser en parallèle.
Autres couteaux sur demande !
Toutes les pièces en contact avec l'échantillon sont autoclavables.

Cuves de broyage de 1,4 litre

Aide à la sélection


  • Cuves de broyage de 1,4 litres

    Pour tous les échantillons standards

    Pour une observation optimale du processus de broyage

    		 Cuve de broyage standard

    en plastique

    autoclavable

    Compris dans les accessoires standards livrés avec le broyeur
    Pour le broyage cryogénique et les échantillons plus durs Cuve de broyage en acier inoxydable 316L

    autoclavable
    Pour la vérification des polymères Cuve de broyage en verre

    autoclavable
    Pour des échantillons huileux, pour la préparation d'échantillons sans BPA, résistant aux produits chimiques,

    résistant au lave-vaisselle jusqu'à 80° C

    sans plastifiant

    		 Cuve de broyage en Eastman Tritan Copolyester
    Pour les matériaux pas trop durs, déjà en petits morceaux, par exemple pour le contrôle de qualité dans l’alimentaire, le pharmaceutique, la chimie, la médecine légale et la pathologie Cuves de broyage à usage unique
Grinding vessels made of different materials for the Fritsch Knife Mill Pulverisette 11

Le récipient de broyage en plastique PC autoclavable, est inclus pour le broyage cryogénique et pour le broyage d'échantillons plus durs, nous proposons également un récipient de broyage en autoclavable acier inoxydable 316L.





Choisissez la cuve de broyage

Cuves de broyage

standard grinding vessel made of plastic PC
N° 11.3151.16
standard grinding vessel made of plastic PC

The grinding vessel made of plastic PC is included with the FRITSCH Knife Mill. The transparent grinding vessel made of scratch-resistant autoclavable plastic PC for the optimal observation of the comminution process is suitable for all standard samples.








ANALYSE DE RÉFÉRENCE
General specifications
MaterialPolycarbonate – PC
ISO/EN/DIN code7391-PC
Chemical composition
Chemical Formula HO-C6H4-R-C6H4-OH
Melting point150°C
Physical and mechanical properties
Density1.20 g/cm³
HardnessHB 115


Explanations on hardness data
grinding vessel made of stainless steel 316L
N° 11.3280.00
grinding vessel made of stainless steel 316L

The grinding vessel made of autoclavable stainless steel 316L is suitable for cryogenic comminution and for the grinding of harder samples. Samples which are difficult to grind can be embrittled with liquid nitrogen directly in the grinding vessel made of stainless steel 316L. The sample materials remain 100 % cold.
For this purpose, please select the special lid, order no. 11.3220.00 with the easily exchangeable single-use sieve insert – the reliable protection against contamination. Single-use sieve inserts can be ordered with order no. 11.3224.00.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
grinding vessel made of Eastman Tritan Copolyester
N° 11.3152.16
grinding vessel made of Eastman Tritan Copolyester

The grinding vessel made of Eastman Tritan Copolyester is suitable for the comminution of oily samples and for BPA-free sample preparation and which is plasticiserfree, resistant to chemicals and dishwasher-proof up to 80° C.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialEastman Tritan Copolyester
TX1001
General Properties
food safe
tasteless
heat resistant up to 85°C
colour stable
resistant to chemicals
dishwasher safe up to max. 80°C (80 cycles, with manual cleaning up to 300 cycles)
free from bisphenol A (BPA) and free from plasticisers
Physical and mechanical properties
Density1.18 g/cm³
HardnessRockwell 112


Explanations on hardness data
grinding vessel made of glass
N° 11.3170.00
grinding vessel made of glass

The grinding vessel made of glass is autoclavable and ideal for food-safe analysis and verification of polymers.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialBorosilicate glass – 3.3
Chemische Zusammensetzung
Chemical CompositionAnteil %
SIO281
B2O3 13
Na2O + K2O4
Al2O32
Physical and mechanical properties
Density2.23 g/cm³


Explanations on hardness data

Couvercles pour les cuves de broyage

Aide à la sélection


  • Couvercles pour les cuves de broyage

    Pour les échantillons mous, moyennement durs, qui n'ont pas besoin d'être comprimé Couvercle standard en silicone

    autoclavable

    Compris dans les accessoires standards livrés avec le broyeur
    Pour les échantillons humides, liquides et visqueux

    pour réduire le volume de la chambre de broyage jusqu'à 0,54 litre

    pour comprimer et détacher manuellement l'échantillon.

    Idéal pour les petites quantités d'échantillons ou les matériaux difficiles à broyer pour obtenir un échantillon homogène dans une gamme étroite de granulométrie.

    		 Système de couvercle Vario avec tige de poussée en plastique PP et poussoir de réduction

    autoclavable
    Pour les échantillons solides, secs, pour réduire le volume de la chambre de broyage jusqu'à 0,54 litre

    pour comprimer ou détacher manuellement l'échantillon.

    Idéal pour les petites quantités d'échantillons ou les matériaux difficiles à broyer pour obtenir un échantillon homogène dans une gamme étroite de granulométries.

    		 Poussoir de réduction pour les échantillons secs et solidespour le système de couvercle Vario avec tige de poussée

    autoclavable
    pour la fragmentation cryogénique avec tamis à usage unique Covercle spécial

    autoclavable

    Pour le broyage cryogénique avec des inserts à tamis à usage unique Jeu d’inserts à tamis à usage unique
Various lids for the Fritsch Knife Mill Pulverisette 11 for different applications

Disponible en standard avec un couvercle en silicone, un système Vario-Lid avec piston en plastique PP et un poussoir d'échantillon de réduction. Pour la fragmentation cryogénique, nous proposons un couvercle spécial avec un tamis à usage unique.

Des couvercles supplémentaires sont disponibles sur demande.

Choisissez le couvercle

Couvercles pour les cuves de broyage

Standard lid made of silicone
N° 11.3203.15
Standard lid made of silicone

The included standard lid made of silicone is ideal for the comminution of soft, medium-hard samples which do not need to be compressed.








ANALYSE DE RÉFÉRENCE
General specifications
MaterialSilicone LR 3003/70 A/B
Physical and mechanical properties
Density1.14 g/cm³
Hardness70 Shore A


Explanations on hardness data
Vario-Lid system with plunger made of plastic PP and reduction sample pusher for moist, liquid and viscous sample materials
N° 11.3180.00
Vario-Lid system with plunger made of plastic PP and reduction sample pusher for moist, liquid and viscous sample materials

The freely adjustable Vario-Lid system made of plastic PP fulfils two important requirements at the same time: It can be used to reduce the grinding chamber volume down to 0.54 litre and to manually compress and loosen up the sample material at the beginning and at any time during comminution. Thus you always achieve a homogeneous sample in a narrow particle size range even for smaller


sample quantities and for difficult-to-grind materials. The Vario-Lid system is delivered as a standard with a reduction sample pusher for moist, liquid and viscous sample materials such as tomatoes, cucumbers or yoghurt. It automatically returns rising liquids during the comminution and can be used for most sample materials.


A reduction sample pusher can be ordered as an option for dry, solid samples under order no. 11.3189.16.








ANALYSE DE RÉFÉRENCE
General specifications
MaterialPolypropylene – PP 1502
ISO/EN/DIN code1183
Chemical composition
Chemical FormulaC3H6
Melting point163°C
Max. application temp. constant100° C
Max. application temp. briefly 140°
Physical and mechanical properties
Density0.903 g/cm³
HardnessShore D70


Explanations on hardness data
Reduction sample pusher for dry, solid samples for Vario-Lid system with plunger
N° 11.3189.16
Reduction sample pusher for dry, solid samples for Vario-Lid system with plunger

Reduction sample pusher for dry, solid samples for Vario-Lid system with plunger made of plastic PP.


The sample material can be manually compressed or loosened at the beginning and at any time during comminution.








ANALYSE DE RÉFÉRENCE
General specifications
MaterialPolypropylene – PP 1502
ISO/EN/DIN code1183
Chemical composition
Chemical FormulaC3H6
Melting point163°C
Max. application temp. constant100° C
Max. application temp. briefly 140°
Physical and mechanical properties
Density0.903 g/cm³
HardnessShore D70


Explanations on hardness data
Special lid made of plastic PC for cryogenic comminution with single-use sieve insert for grinding vessel made of stainless steel 316L
N° 11.3220.00
Special lid made of plastic PC for cryogenic comminution with single-use sieve insert for grinding vessel made of stainless steel 316L

The special lid made of plastic PC for cryogenic comminution with single-use sieve insert for cryogenic comminution with the grinding vessel made of stainless steel 316L: order no. 11.3280.00.

For this lid we offer a set of single-use sieve inserts (set = 10 inserts): order no. 11.3224.00.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialPolycarbonate – PC
ISO/EN/DIN code7391-PC
Chemical composition
Chemical Formula HO-C6H4-R-C6H4-OH
Melting point150°C
Physical and mechanical properties
Density1.20 g/cm³
HardnessHB 115


Explanations on hardness data
Set of single-use sieve inserts (set = 10 inserts)
N° 11.3224.00
Set of single-use sieve inserts (set = 10 inserts)

For exchanging the sieve insert in the special lid for cryogenic grinding.
The single-use sieve insert guarantees reliable protection against contamination.


Couteaux

Aide à la sélection


  • Couteaux

    Pour presque tous les matériaux Couteau standard en acier inoxydable

    autoclavable

    Compris dans les accessoires standards livrés avec le broyeur
    For brittle , hard samples Couteau de hachoir en acier inoxydable

    autoclavable
    Pour les échantillons fibreux, durs et osseux Couteau à hachoir avec lames dentées en acier inoxydable

    autoclavable
    Pour un broyage sans métal Couteau à hachoir avec lames dentées

    Revêtement TIN

    autoclavable
Various knives made of different materials and with different blades for the Knife Mill Pulverisette 11

Le couteau standard en acier inoxydable peut être utilisé pour la fragmentation de presque tous les matériaux grâce à ses quatre lames et à une géométrie bien conçue. Pour broyer des échantillons particulièrement fibreux, durs ou nerveux, nous recommandons le couteau à lames dentées en acier inoxydable.
Des couteaux supplémentaires sont disponibles sur demande

Choisissez le couteau

Couteaux pour les cuves de broyage standard, les cuves de broyage en acier inoxydable et les cuves de broyage en plastique. Copolyester Eastman Tritan

standard knife made of stainless steel
N° 11.3204.00
standard knife made of stainless steel

The standard knife with four cutting edges of the PULVERISETTE 11 (included with the instrument) can be used for the comminution of nearly all materials. The specially curved knife blades achieve with up to 56,000 cutting processes per minute a homogeneous sample significantly faster than comparable instruments at the same grinding time and rotational speed. And in reverse mode, the knives enable a better thorough mixing if necessary.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialStainless steel – 1.4028
ISO/EN/DIN codeX30Cr13 / DIN EN 10088-3 / AISI 420
Chemical composition
ElementShare %
Iron – Fe87.74–85.65
Carbon – C0.26–0.35
Chromium – Cr12.00–14.00
Physical and mechanical properties
Density7.7 kg/dm³
Hardness24 HRC


Explanations on hardness data
sickle knife made of stainless steel
N° 11.3208.00
sickle knife made of stainless steel

The sickle knife made of stainless steel suitable for the comminution of brittle, hard samples.








ANALYSE DE RÉFÉRENCE
General specifications
MaterialStainless steel – 1.4034
ISO/EN/DIN codeX46Cr13 / DIN EN 10088-3 / AISI 420
Chemical composition
ElementShare %
Iron – Fe87.07–82.93
Carbon – C0.43–0.5
Silicon – Si 0–max. 1.0
Manganese – Mn0–max. 1.0
Phosphorus – P0–max 0.04
Sulphur – S0–max. 0.03
Chromium – Cr12.5–14.5
Physical and mechanical properties
Density7.7 kg/dm³
Hardness245 HB


Explanations on hardness data
sickle knife with serrated blades made of stainless steel
N° 11.3210.00
sickle knife with serrated blades made of stainless steel

The sickle knife with serrated blades made of stainless steel is especially suited for the comminution of especially fibrous, tough or sinewy samples.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialStainless steel – 1.4034
ISO/EN/DIN codeX46Cr13 / DIN EN 10088-3 / AISI 420
Chemical composition
ElementShare %
Iron – Fe87.07–82.93
Carbon – C0.43–0.5
Silicon – Si 0–max. 1.0
Manganese – Mn0–max. 1.0
Phosphorus – P0–max 0.04
Sulphur – S0–max. 0.03
Chromium – Cr12.5–14.5
Physical and mechanical properties
Density7.7 kg/dm³
Hardness245 HB


Explanations on hardness data
sickle knife with serrated blades, TiN-coated
N° 11.3215.00
sickle knife with serrated blades, TiN-coated

The sickle knife with serrated blades, TiN-coated, is optimal for metal-free grinding.


Couteau pour cuve de broyage en verre

sickle knife made of stainless steel
N° 11.3270.00
sickle knife made of stainless steel

The sickle knife made of stainless steel suitable for the comminution of brittle, hard samples.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialStainless steel – 1.4034
ISO/EN/DIN codeX46Cr13 / DIN EN 10088-3 / AISI 420
Chemical composition
ElementShare %
Iron – Fe87.07–82.93
Carbon – C0.43–0.5
Silicon – Si 0–max. 1.0
Manganese – Mn0–max. 1.0
Phosphorus – P0–max 0.04
Sulphur – S0–max. 0.03
Chromium – Cr12.5–14.5
Physical and mechanical properties
Density7.7 kg/dm³
Hardness245 HB


Explanations on hardness data
sickle knife with serrated blades made of stainless steel
N° 11.3271.00
sickle knife with serrated blades made of stainless steel

The sickle knife with serrated blades made of stainless steel is especially suited for the comminution of especially fibrous, tough or sinewy samples.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialStainless steel – 1.4034
ISO/EN/DIN codeX46Cr13 / DIN EN 10088-3 / AISI 420
Chemical composition
ElementShare %
Iron – Fe87.07–82.93
Carbon – C0.43–0.5
Silicon – Si 0–max. 1.0
Manganese – Mn0–max. 1.0
Phosphorus – P0–max 0.04
Sulphur – S0–max. 0.03
Chromium – Cr12.5–14.5
Physical and mechanical properties
Density7.7 kg/dm³
Hardness245 HB


Explanations on hardness data
sickle knife with serrated blades, TiN-coated
N° 11.3272.00
sickle knife with serrated blades, TiN-coated

The sickle knife with serrated blades, TiN-coated, is optimal for metal-free grinding.

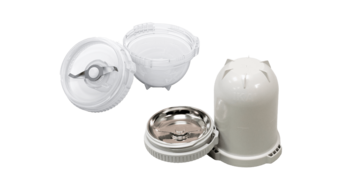

Cuves de broyage à usage unique

Plastic PP Single-use grinding vessels for Fritsch Knife Mill Pulverisette 11

Les cuves de broyage à usage unique sont idéales pour une utilisation dans le domaine pharmaceutique, la criminalogie et pathologie, l'extraction d'ARN / ADN, la bactériologie et la chimie.

Choisissez de Accessoires

Cuves de broyage à usage unique

adapter for single-use grinding vessel 40 ml and 100 ml volume
N° 11.3230.00
adapter for single-use grinding vessel 40 ml and 100 ml volume

Adapter for single-use grinding vessel 40 ml and 100 ml volume.
For the use of the Knife Mill PULVERISETTE 11 in single-use technology, we have developed an adapter for single-use grinding vessels 40 ml and 100 ml volume for the comminution of not too hard materials, which are available in small pieces. Your advantage: safe protection against cross contamination, no need for cleaning and the sample can be stored in the single-use grinding vessels.
Ideal for use in food quality control, pharmacy, chemistry, forensics and pathology.


set of single-use grinding vessels 40 ml volume made of plastic PP (set = 10 pieces)
N° 83.3280.00
set of single-use grinding vessels 40 ml volume made of plastic PP (set = 10 pieces)

Set of single-use grinding vessels 40 ml volume made of plastic PP (set = 10 pieces).
The single-use grinding vessels are ideal for use in food quality control, pharmacy, chemistry, forensics and pathology.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialPolypropylene – PP 1502
ISO/EN/DIN code1183
Chemical composition
Chemical FormulaC3H6
Melting point163°C
Max. application temp. constant100° C
Max. application temp. briefly 140°
Physical and mechanical properties
Density0.903 g/cm³
HardnessShore D70


Explanations on hardness data
Set single-use grinding vessels 40 ml volume made of plastic PP (set = 100 pieces)
N° 83.3282.00
Set single-use grinding vessels 40 ml volume made of plastic PP (set = 100 pieces)

Set single-use grinding vessels 40 ml volume made of plastic PP (set = 100 pieces).
The single-use grinding vessels are ideal for the use in in food quality control, pharmacy, chemistry, forensics and pathology.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialPolypropylene – PP 1502
ISO/EN/DIN code1183
Chemical composition
Chemical FormulaC3H6
Melting point163°C
Max. application temp. constant100° C
Max. application temp. briefly 140°
Physical and mechanical properties
Density0.903 g/cm³
HardnessShore D70


Explanations on hardness data
Set of single-use grinding vessels 100 ml volume made of plastic PP (set = 10 pieces)
N° 83.3285.00
Set of single-use grinding vessels 100 ml volume made of plastic PP (set = 10 pieces)

Set of single-use grinding vessels 100 ml volume made of plastic PP (set = 10 pieces).
The single-use grinding vessels are ideal for the use in food quality control, pharmacy, chemistry, forensics and pathology.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialPolypropylene – PP 1502
ISO/EN/DIN code1183
Chemical composition
Chemical FormulaC3H6
Melting point163°C
Max. application temp. constant100° C
Max. application temp. briefly 140°
Physical and mechanical properties
Density0.903 g/cm³
HardnessShore D70


Explanations on hardness data
Set single-use grinding vessels 100 ml volume made of plastic PP (set = 100 pieces)
N° 83.3287.00
Set single-use grinding vessels 100 ml volume made of plastic PP (set = 100 pieces)

Set single-use grinding vessels 100 ml volume made of plastic PP (set = 100 pieces).
The single-use grinding vessels are ideal for use in food quality control, pharmacy, chemistry, forensics and pathology.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialPolypropylene – PP 1502
ISO/EN/DIN code1183
Chemical composition
Chemical FormulaC3H6
Melting point163°C
Max. application temp. constant100° C
Max. application temp. briefly 140°
Physical and mechanical properties
Density0.903 g/cm³
HardnessShore D70


Explanations on hardness data

Choisissez le Logiciel

Software P-11Control for automatic control of the Knife Mill via the integrated USB port

Le logiciel P-11Control pour Windows: pour le contrôle automatique du broyeur via port USB, pour l’édition, la sauvegarde et la gestion des SOPs avec le générateur de rapports de broyage.

le logiciel

Logiciel P-11Control pour Windows

Software P-11Control for Windows
N° 11.3990.00
Software P-11Control for Windows

The Software P-11Control for Windows: for automatic control of the mill via USB, for editing, saving and managing of the SOPs with grinding report generator.
With the software P-11Control, the mill can be controlled via the integrated USB port. SOPs can be edited, saved and managed directly on the connected laptop via drag & drop. Reversion-proof grinding reports can be created, archived quickly and easily with the integrated report generator.
The software P-11Control offers a data interface for the connection to your laboratory database.


Autres accessoires

IQ/OQ documentation for support of instrument qualification in quality management system for Knife Mill PULVERISETTE 11

En outre, un racloir, un accouplement de lame de rechange et une certification pour votre mixeur homogénéisateur à couteaux PULVERISETTE 11 sont également disponibles.

Choisissez autres accessoires

Autres accessoires

Scraper
N° 83.4075.00

The scraper made of robust plastic is a useful helper in the laboratory and can be utilized to remove sample material completely from the grinding vessel.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialPUR-Elastomer – TPU 93A
Material number2634
Chemical composition
Chemical FormulaC3H7NO2
Physical and mechanical properties
Density ISO 11831.24
Hardness Shore (A/D)A93


Explanations on hardness data
replacement knife coupling for the protection of the knife holder
N° 11.3205.16

A replacement knife coupling for the protection of the knife holder is already included in the delivery of the instrument. We recommend replacing the knife coupling after 200 hours of operation to avoid damage to the instrument.


IQ/OQ documentation (questionnaire format - implementation by customer)
N° 96.0350.00
IQ/OQ documentation (questionnaire format - implementation by customer)

IQ/OQ documentation (questionnaire format - implementation by customer) for the independent utilization for the support of instrument qualification in the quality management system for the Knife Mill PULVERISETTE 11.


Référence
11.3020.00
Description CARACTÉRISTIQUES TECHNIQUES
Accessoires
Vidéos / ANIMATIONS 3D Téléchargements
Jessica Seifert
FRITSCH GmbH - Milling and Sizing
Industriestrasse 8
55743 Idar-Oberstein
Téléphone +49 67 84 70 0

Base de données sur les protocoles de broyage
EFFECTUEZ UN TEST

TEST DE BROYAGE GRATUIT

Faites-nous parvenir un échantillon, nous le soumettrons à un test de broyage - nous vous enverrons un compte rendu individuel de broyage.
