Diviseur d'échantillons à cône rotatif

LABORETTE 27

Référence
27.1420.00
Accessoires

Veuillez tenir compte des points suivants : Ce diviseur d'échantillons FRITSCH doit être complété d'une tête de division, disponible avec différents rapports de division (1:8,1:10,1:30) et en différents matériaux.
Nous fournissons des têtes de division et des trémies pour échantillons pour tous les matériaux d'échantillon.
Les verres d'échantillonnage sont disponibles en différentes tailles.
Pour obtenir une amenée automatique, combinez votre diviseur d'échantillons à cône rotatif avec :

Trémie d'alimentation à vibrations FRITSCH LABORETTE 24

Broyeur rapide à rotor N PULVERISETTE 14 PREMIUM LINE ET CLASSIC LINE

Diviseurs, flacons et trémie compris

Aide à la sélection

  • Vue d'ensemble têtes de division LABORETTE 27

    Rapport de division Division 1:8 Division 1:10 Division 1:30
    Matériau Plastique POM ou aluminium Plastique POM ou aluminium Plastique POM ou aluminium à revêtement
    Nombre de sous-échantillons 8 10 3
    Taille initiale max. 10 mm 10 mm 2,5 mm
    Quantité max. d'échantillon 4 000 ml 2 500 ml 300 ml
    Division à sec/par voie humide à sec/par voie humide à sec/par voie humide à sec/par voie humide
    Volume utile des flacons d'échantillonnage 32, 250, 500 ml* 32, 250 ml* 15, 20, 30 ml
  • Autres informations

    Filetage du verre GL 55, autres filetages pour vos flacons d'échantillon disponibles sur demande.

Les diviseurs sont disponibles en rapport de division de 1:8; 1:10 ou 1:30 et en plastique POM. Des têtes de division 1:8 et 1:10 en aluminium anodisé sont destinées aux matériaux et aux suspensions qui génèrent une abrasion en surface. La tête de division 1:30, en aluminium elle aussi, dotée d'un revêtement en PTFE particulièrement résistant, est destinée aux solides et aux suspensions particulièrement agressifs.

Choisissez les diviseurs

Rapport de division 1:8

made of POM plastic
N° 27.1300.00
Dividing head made of POM plastic

POM plastic is recommended for the division of materials and suspensions, which don't produce abrasion at the surface.

Division ratio: 1:8
Number of possible sub-samples: 8
Max. permissible particle size: 10 mm
Max. feed volume: 4,000 ml
Division: dry/wet
Capacity of sample bottles: 32, 250, 500 ml (thread of glass bottles: GL55)

Equipment: The dividing head is delivered with 8 samples bottles 500 ml with screw lid and funnel 10 mm dia. as standard (included in the price of the dividing head).

This dividing head is also available in anodized aluminium (article no. 27.1150.00) for the division of materials and suspensions, which produce abrasion at the surface.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialPOM Polyoxymethylene
ISO/EN/DIN CodeDIN 7728 C9021
Chemical composition
ElementFormula
Polyoxmethylenecopolymer (Polyacetale)CxH2xOx
Melting point165° C
max. Application temp. constant90°
max. Application temp. briefly140°
Chemical Resistance
Aliphatical hydrocarbon
Aromatical hydrocarbon
Halogenised hydrocarbon
weak acid
strong alkaline solution
Physical and mechanical properties
Density141,g /cm³
Hardnessextremely hard
made of aluminium
N° 27.1150.00
Dividing head made of aluminium

Anodized aluminium is recommended for the division of materials and suspensions, which produce abrasion at the surface.

Division ratio: 1:8
Number of possible sub-samples: 8
Max. permissible particle size: 10 mm
Max. feed volume: 4,000 ml
Division: dry/wet
Capacity of sample bottles: 32, 250, 500 ml (thread of glass bottles: GL55)

Equipment: The dividing head is delivered with 8 samples bottles 500 ml with screw lid and funnel 10 mm dia. as standard (included in the price of the dividing head).

This dividing head is also available in POM plastic (article no. 27.1300.00) for the division of materials and suspensions, which don't produce abrasion at the surface.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialAluminium AlMgSi 0,5
ISO/EN/DIN Code3.3206 /1725
Chemical composition
ElementShare %
Iron – Fe0.1-03
Zinc - Zn0.15
Silicon – Si0.3-0.6
Manganese – Mn0.1
Copper– Cu0.1
Manganese – Mg0.35 - 0.60
Chromium – Cr0.05
Titan – Ti + Zr Circonium0.1
Physical and mechanical properties
Density2.7 g/cm³
Hardness65 HBW


Explanations on hardness data

Rapport de division 1:10

made of POM plastic
N° 27.5150.00
Dividing head made of POM plastic

POM plastic is recommended for the division of materials and suspensions, which don't produce abrasion at the surface.

Division ratio: 1:10
Number of possible sub-samples: 10 Max.
Permissible particle size: 10 mm
Max. feed volume: 2,500 ml
Division: dry/wet
Capacity of sample bottles: 32, 250 ml (thread of glass bottles: GL55)

Equipment: The dividing head is delivered with 10 samples bottles 250 ml with screw lid and funnel 10 mm dia. as standard (included in the price of the dividing head).

This dividing head is also available in anodized aluminium (article no. 27.4150.00) for the division of materials and suspensions, which produce abrasion at the surface.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialPOM Polyoxymethylene
ISO/EN/DIN CodeDIN 7728 C9021
Chemical composition
ElementFormula
Polyoxmethylenecopolymer (Polyacetale)CxH2xOx
Melting point165° C
max. Application temp. constant90°
max. Application temp. briefly140°
Chemical Resistance
Aliphatical hydrocarbon
Aromatical hydrocarbon
Halogenised hydrocarbon
weak acid
strong alkaline solution
Physical and mechanical properties
Density141,g /cm³
Hardnessextremely hard
made of aluminium
N° 27.4150.00
Dividing head made of aluminium

Anodized aluminium is recommended for the division of materials and suspensions, which produce abrasion at the surface.

Division ratio: 1:10
Number of possible sub-samples: 10
Max. permissible particle size: 10 mm
Max. feed volume: 2,500 ml
Division: dry/wet
Capacity of sample bottles: 32, 250 ml (thread of glass bottles: GL55)

Equipment: The dividing head is delivered with 10 samples bottles 250 ml with screw lid and funnel 10 mm dia. as standard (included in the price of the dividing head).

This dividing head is also available in POM plastic (article no. 27.5150.00) for the division of materials and suspensions, which don't produce abrasion at the surface.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialAluminium AlMgSi 0,5
ISO/EN/DIN Code3.3206 /1725
Chemical composition
ElementShare %
Iron – Fe0.1-03
Zinc - Zn0.15
Silicon – Si0.3-0.6
Manganese – Mn0.1
Copper– Cu0.1
Manganese – Mg0.35 - 0.60
Chromium – Cr0.05
Titan – Ti + Zr Circonium0.1
Physical and mechanical properties
Density2.7 g/cm³
Hardness65 HBW


Explanations on hardness data

Rapport de division 1:30 pour 3 sous-quantités

made of POM plastic
N° 27.6150.00
Dividing head made of POM plastic

POM plastic is recommended for the division of materials and suspensions, which don't produce abrasion at the surface.

Division ratio: 1:30
Number of possible sub-samples: 3
Max. permissible particle size: 2.5 mm
Max. feed volume: 300 ml
Division: dry/wet
Capacity of sample bottles: 15, 20, 30 ml

Equipment: The dividing head is delivered with 3 samples bottles 15 ml with screw lid and funnel 10 mm dia. as well as 1 funnel each of 5 mm dia. for dry- resp. wet division as standard (included in the price of the dividing head).

This dividing head is also available in PTFE coated aluminium (article no. 27.2150.00) for the division of aggressive materials and suspensions, which attack POM plastic and aluminium.


ANALYSE DE RÉFÉRENCE
General specifications
MaterialPOM Polyoxymethylene
ISO/EN/DIN CodeDIN 7728 C9021
Chemical composition
ElementFormula
Polyoxmethylenecopolymer (Polyacetale)CxH2xOx
Melting point165° C
max. Application temp. constant90°
max. Application temp. briefly140°
Chemical Resistance
Aliphatical hydrocarbon
Aromatical hydrocarbon
Halogenised hydrocarbon
weak acid
strong alkaline solution
Physical and mechanical properties
Density141,g /cm³
Hardnessextremely hard
made of PTFE coated aluminium
N° 27.2150.00
Dividing head made of PTFE coated aluminium

PTFE coated aluminium is recommended for the division of aggressive materials and suspensions, which attack POM plastic and aluminium.

Division ratio: 1:30
Number of possible sub-samples: 3
Max. permissible particle size: 2.5 mm
Max. feed volume: 300 ml
Division: dry/wet
Capacity of sample bottles: 15, 20, 30 ml

Equipment: This dividing head is delivered with 3 samples bottles 15 ml with screw lid and funnel 10 mm dia. as well as 1 funnel each of 5 mm dia. for dry- resp. wet division as standard (included in the price of the dividing head).

This dividing head is also available in POM plastics (article no. 27.6150.00) for the division of materials and suspensions, which don't produce abrasion at the surface.


ANALYSE DE RÉFÉRENCE
General specifications
Material PTFE
CAS Number9002-84-0
Chemical composition
ElementFormula
PolytetrafluoroethyleneC 2F4
Melting point327° C
Max. application temp. constant260° C
Max. application temp. briefly300° C
Physical and mechanical properties
Density2.16 g /cm³
Ball pressure hardness ISO 868, ISO 2039-2, D 55 Shore

Rapport de division 1:30 pour 30 sous-quantités

Dividing head made of POM plastic incl. 30 sample tubes
N° 27.6180.00

Division ratio: 1:30
Number of possible sub-samples: 30
Max. permissible particle size: 2.5 mm
Max. feed volume: 300 ml
Division: dry/wet
Capacity of sample bottles: 15, 20, 30 ml

Equipment: The dividing head is delivered with 3 samples bottles 15 ml with screw lid and funnel 10 mm dia. as well as 1 funnel each of 5 mm dia. for dry- resp. wet division as standard (included in the price of the dividing head).


Flacons d'échantillonnage

Les verres d'échantillonnage sont disponibles en plusieurs tailles de 15 ml à 500 ml. Des inserts en plastique spécialement développés, de 32 ml de volume, sont disponibles, qui peuvent être installés dans des verres d'échantillonnage de 250 ml et de 500 ml-pour réduire considérablement la quantité.

Choisissez les verres d'échantillonnage

Flacons d'échantillonnage

Sample glass 250 ml
N° 27.1450.00
Sample glass 250 ml

Sample bottle with screw lid, thread of sample bottle GL55, sample bottle can be used with dividing heads, division ratio 1:8 and 1:10.
Furthermore a sample vessel 32 ml with lid, article-number 83.3190.16, is available, which can be inserted in the sample bottles 250 ml and 500 ml for dividing smallest sample quantities.
The sample glass is recommended for sample exhaustion with the small volume Cyclone separator for sample discharges smaller than 500 ml, since only a 500 ml sample glass is included in the delivery of the small volume performance Cyclone separator.


Sample glass 500 ml
N° 27.1460.00
Sample glass 500 ml

Sample bottle with screw lid, thread of sample bottle GL55.
Sample bottle can be used with dividing heads, division ratio 1:8.
Furthermore a sample vessel 32 ml with lid, article-number 83.3190.16, is available, which can be inserted in the sample bottles 250 ml and 500 ml for dividing smallest sample quantities.
Sample glass can also be used for sample exhaustion with the small volume Cyclone separator.


Sample vessel 32 ml
N° 83.3190.16
Sample vessel 32 ml

Sample vessel 32 ml with lid for sample bottle 250 ml and 500 ml.


For dividing smallest sample quantities, this sample vessel 32 ml can be inserted in the sample bottles 250 ml (article-number 27.1450.00) and sample bottles 500 ml (article-number 27.1460.00).


sample bottle 30 ml
N° 83.3120.00
Sample bottle 30 ml

Sample bottle with lid can be used with the dividing heads with division ratio 1:30.


sample bottle 20 ml
N° 83.3110.00
Sample bottle 20 ml

Sample bottle with lid can be used with the dividing heads with division ratio 1:30.


sample bottle 15 ml
N° 83.3100.00
Sample bottle 15 ml

Sample bottle with lid can be used with dividing heads, division ratio 1:30.


Sample tube made of PS (Polystyrene)
N° 83.3185.00

Sample tube made of PS (Polystyrene) 5 ml (division ratio 1:30 - 30 subsamples)

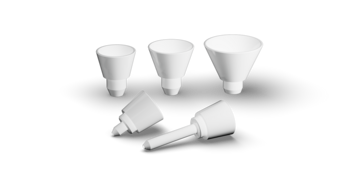

Trémie

Chaque tête de division de LABORETTE 27 est fournie avec une trémie de 10 mm de diamètre, et les têtes de division à rapport de division 1:30 avec une trémie de 5 mm en plus. Il existe également des trémies de mit 15 mm et 22 mm de diamètre, qui s'adaptent parfaitement à la granulométrie concernée, et des trémies conçues spécialement pour les liquides.

Choisissez la trémie appropriée

Trémie

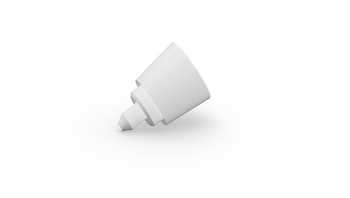

5 mm dia.
N° 27.1290.16
Funnel 5 mm dia. made of POM plastic

The funnel is also offered in 10, 15 and 22 mm dia. to suit the particle size of the sample being divided.
For the division of suspensions with dividing head, division ratio 1:30 a separate funnel, order no. 27.1330.16 is offered

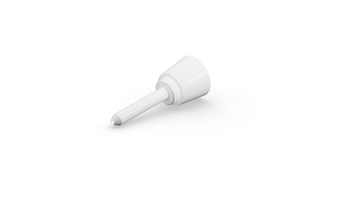

5 mm dia. (only for division of suspensions with dividing head, division ratio 1:30)
N° 27.1330.16
Funnel 5 mm dia. made of POM plastic

For the division of suspensions with dividing head, division ratio 1:30

The funnel is also offered in 5, 10 and 15, 22 mm dia. to suit the particle size of the sample being divided.

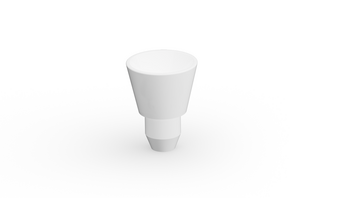

10 mm dia.
N° 27.1200.16
Funnel 10 mm dia. made of POM plastic

The funnel is also offered in 5, 15 and 22 mm dia. to suit the particle size of the sample being divided.

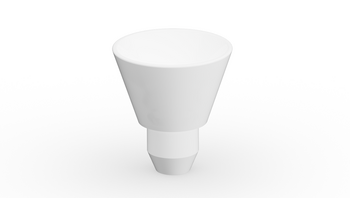

15 mm dia.
N° 27.1210.16
Funnel 15 mm dia. made of POM plastic

The funnel is also offered in 5, 10 and 22 mm dia. to suit the particle size of the sample being divided.

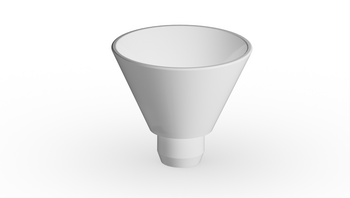

22 mm dia.
N° 27.1220.16
Funnel 22 mm dia. made of POM plastic

The funnel is also offered in 5, 10 and 15 mm dia. to suit the particle size of the sample being divided.


Autres accessoires

Dispositif de protection empêchant le contact direct avec la tête de division en rotation.
Une certification pour votre séparateur d'échantillons à cône rotatif est également disponible, ainsi que des accessoires pour l'alimentation automatique des échantillons.

Choisissez Autres accessoires

Dispositif de protection

protective device, polyacryl
N° 27.1500.17
Protective device

Made of colourless polyacryl, prevents direct contact with the turning dividing head.


Certification

IQ/OQ documentation (questionnaire format - implementation by customer)
N° 96.0380.00
IQ/OQ documentation (questionnaire format - implementation by customer)

IQ/OQ documentation (questionnaire format - implementation by customer) for the independent utilization for the support of instrument qualification in the quality management system for the Rotary Cone Sample Divider PULVERISETTE 27.


ACCESSORIES FOR AUTOMATIC SAMPLE FEEDING

Vibratory Feeder LABORETTE 24 with V-shaped channel, 200-240 V/1~
N° 24.0030.00
Vibratory Feeder LABORETTE 24 with V-shaped channel, 200-240 V/1~

Vibratory Feeder LABORETTE 24 with V-shaped channel, funnel and control unit for 200-240 V/1~, 50-60 Hz, 25 Watt.


Details Vibratory Feeder LABORETTE 24


Vibratory Feeder LABORETTE 24 with V-shaped channel, 100-120 V/1~
N° 24.0040.00
Vibratory Feeder LABORETTE 24 with V-shaped channel,100-120 V/1~

Vibratory Feeder LABORETTE 24 with V-shaped channel, funnel and control unit for 100-120 V/1~, 50-60 Hz, 25 Watt.


Details Vibratory Feeder LABORETTE 24


stand for Vibratory Feeder LABORETTE 24
N° 24.9100.00
Stand for Vibratory Feeder LABORETTE 24

solid stand - height adjustable, rotatable, stable


IQ/OQ documentation (questionnaire format – implementation by customer)
N° 96.0370.00
IQ/OQ documentation (questionnaire format – implementation by customer)

IQ/OQ documentation (questionnaire format - implementation by customer) for the independent utilization for the support of instrument qualification in the quality management system for the Vibratory Feeder LABORETTE 24.


Référence
27.1420.00
Jessica Seifert
FRITSCH GmbH - Milling and Sizing
Industriestrasse 8
55743 Idar-Oberstein
Téléphone +49 67 84 70 0

Base de données sur les protocoles de broyage

EFFECTUEZ UN TEST

TEST DE BROYAGE GRATUIT

Faites-nous parvenir un échantillon, nous le soumettrons à un test de broyage - nous vous enverrons un compte rendu individuel de broyage.
